Group B, Poster #242, Ground Motions (GM)
Frequency-Dependent Comparison of Vs30 and Site Period (Ts) as Predictors of Earthquake Ground Motion Intensity Measures

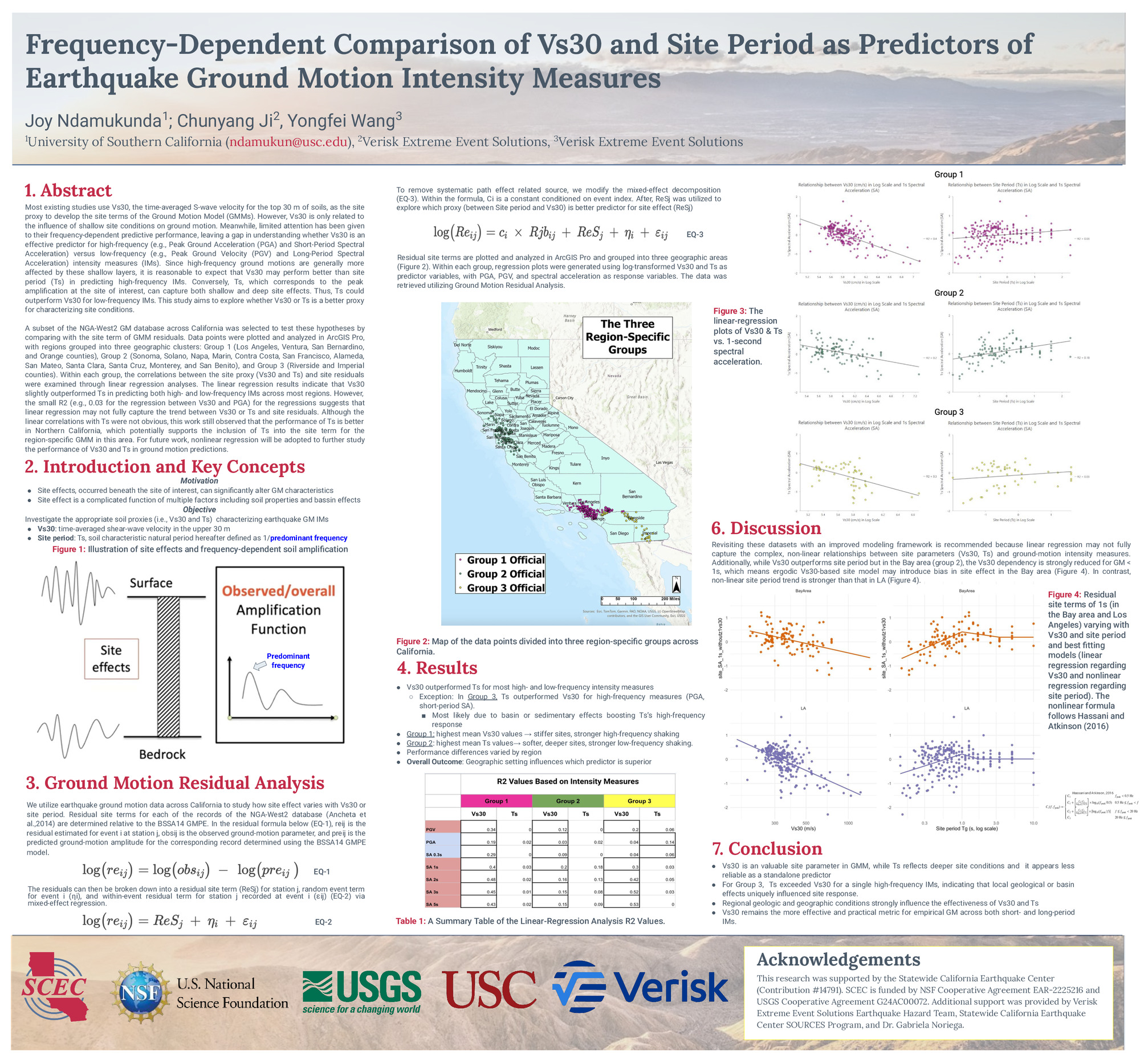

Poster Image:
Poster Presentation
2025 SCEC Annual Meeting, Poster #242, SCEC Contribution #14791 VIEW PDF
re affected by these shallow layers, it is reasonable to expect that Vs30 may perform better than site period (Ts) in predicting high-frequency IMs. Conversely, Ts, which corresponds to the peak amplification at the site of interest, can capture both shallow and deep site effects. Thus, Ts could outperform Vs30 for low-frequency IMs. This study aims to explore whether Vs30 or Ts is a better proxy for characterizing site conditions.
A subset of the NGA-West2 GM database across California was selected to test these hypotheses by comparing with the site term of GMM residuals. Data points were plotted and analyzed in ArcGIS Pro, with regions grouped into three geographic clusters: Group 1 (Los Angeles, Ventura, San Bernardino, and Orange counties), Group 2 (Sonoma, Solano, Napa, Marin, Contra Costa, San Francisco, Alameda, San Mateo, Santa Clara, Santa Cruz, Monterey, and San Benito), and Group 3 (Riverside and Imperial counties). Within each group, the correlations between the site proxy (Vs30 and Ts) and site residuals were examined through linear regression analyses. The linear regression results indicate that Vs30 slightly outperformed Ts in predicting both high- and low-frequency IMs across most regions. However, the small R2 (e.g., 0.03 for the regression between Vs30 and PGA) for the regressions suggests that linear regression may not fully capture the trend between Vs30 or Ts and site residuals. Although the linear correlations with Ts were not obvious, this work still observed that the performance of Ts is better in Northern California, which potentially supports the inclusion of Ts into the site term for the region-specific GMM in this area. For future work, nonlinear regression will be adopted to further study the performance of Vs30 and Ts in ground motion predictions.
SHOW MORE
A subset of the NGA-West2 GM database across California was selected to test these hypotheses by comparing with the site term of GMM residuals. Data points were plotted and analyzed in ArcGIS Pro, with regions grouped into three geographic clusters: Group 1 (Los Angeles, Ventura, San Bernardino, and Orange counties), Group 2 (Sonoma, Solano, Napa, Marin, Contra Costa, San Francisco, Alameda, San Mateo, Santa Clara, Santa Cruz, Monterey, and San Benito), and Group 3 (Riverside and Imperial counties). Within each group, the correlations between the site proxy (Vs30 and Ts) and site residuals were examined through linear regression analyses. The linear regression results indicate that Vs30 slightly outperformed Ts in predicting both high- and low-frequency IMs across most regions. However, the small R2 (e.g., 0.03 for the regression between Vs30 and PGA) for the regressions suggests that linear regression may not fully capture the trend between Vs30 or Ts and site residuals. Although the linear correlations with Ts were not obvious, this work still observed that the performance of Ts is better in Northern California, which potentially supports the inclusion of Ts into the site term for the region-specific GMM in this area. For future work, nonlinear regression will be adopted to further study the performance of Vs30 and Ts in ground motion predictions.
SHOW MORE
Citation: Ndamukunda, J. I., Ji, C., & Wang, Y. (2025, 09). Frequency-Dependent Comparison of Vs30 and Site Period (Ts) as Predictors of Earthquake Ground Motion Intensity Measures. Poster Presentation at 2025 SCEC Annual Meeting.
Keywords: Ground Motions, Ground Motion Models, Spectral Acceleration, Intensity Measures, Low-Intensity Measures, High-Intensitve Measures, Soil Proxy, GIS, Peak Ground Acceleration, Peak Ground Velocity, Vs30, Ts, Site Period, Regression Analysis, Linear-Regression Analysis
Relevant SCEC Themes:
Improving Observations and Closing Data Gaps
Advanced Modeling Frameworks
