2.95, 7 km WNW of Lake Elsinore, CA

2.95, 7 km WNW of Lake Elsinore, CA

Disclaimer: This information is intended solely for research and should not be used for communications with the media or the public.

Table Of Contents

Mainshock Details

(top)

Information and plots in the section are taken from the USGS event page, accessed through ComCat.

FieldValue
Magnitude2.95 (ml)
Time (UTC)Thu, 15 Aug 2024 16:40:24 UTC
Time (UTC)Thu, 15 Aug 2024 16:40:24 UTC
Location33.68133, -117.39817
Depth8.31 km
Statusreviewed

USGS Products

(top)

ShakeMap

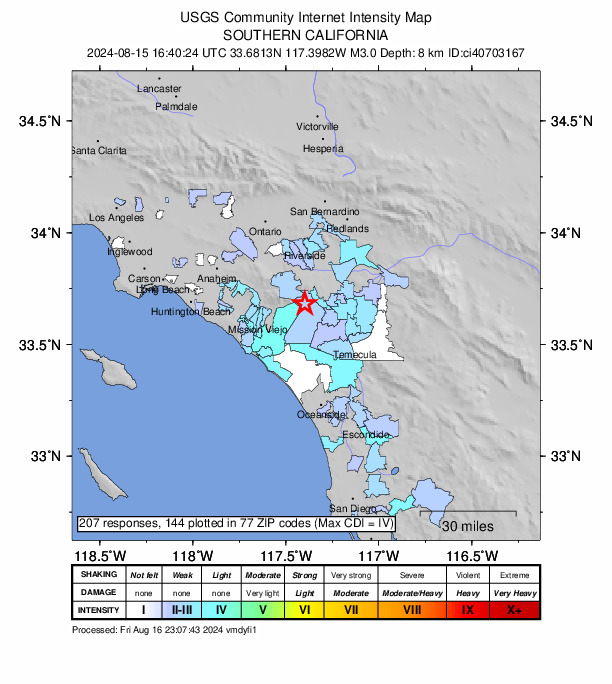

Did You Feel It?
ShakeMapDYFI

Nearby Faults

(top)

2 UCERF3 fault sections are within 10km of this event's hypocenter:

  • Elsinore (Glen Ivy) rev: 1.83km
  • Elsinore (Stepovers Combined): 2.42km

Sequence Details

(top)

These plots show the aftershock sequence, using data sourced from ComCat. They were last updated at 2024/08/17 18:10:23 UTC, 2.06 days after the mainshock.

4 M≥0 earthquakes within 10 km of the mainshock's epicenter.

First HourFirst DayTo Date
M 0234
M 1233

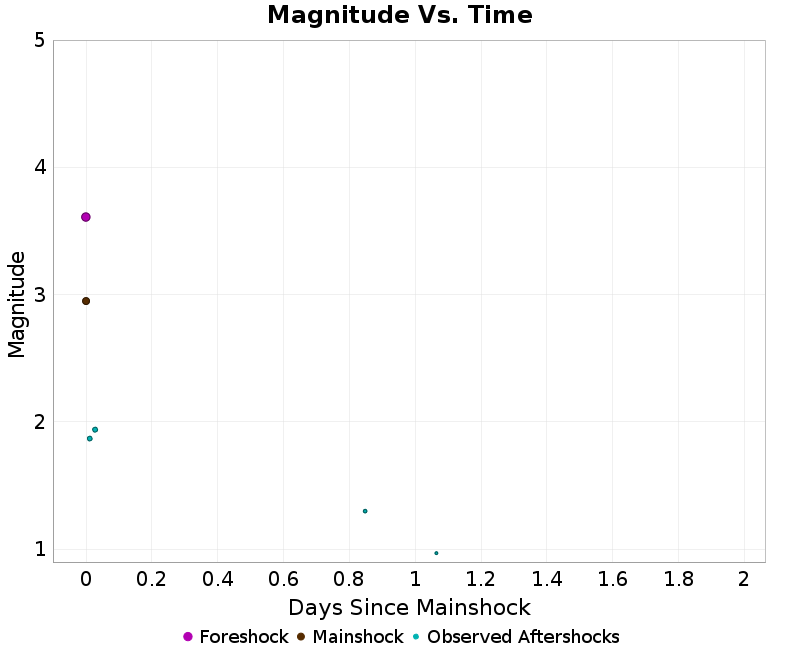

Magnitude Vs. Time Plot

(top)

This plot shows the magnitude vs. time evolution of the sequence. The mainshock is ploted as a brown circle, foreshocks are plotted as magenta circles, and aftershocks are plotted as cyan circles.

Mag vs Time Plot

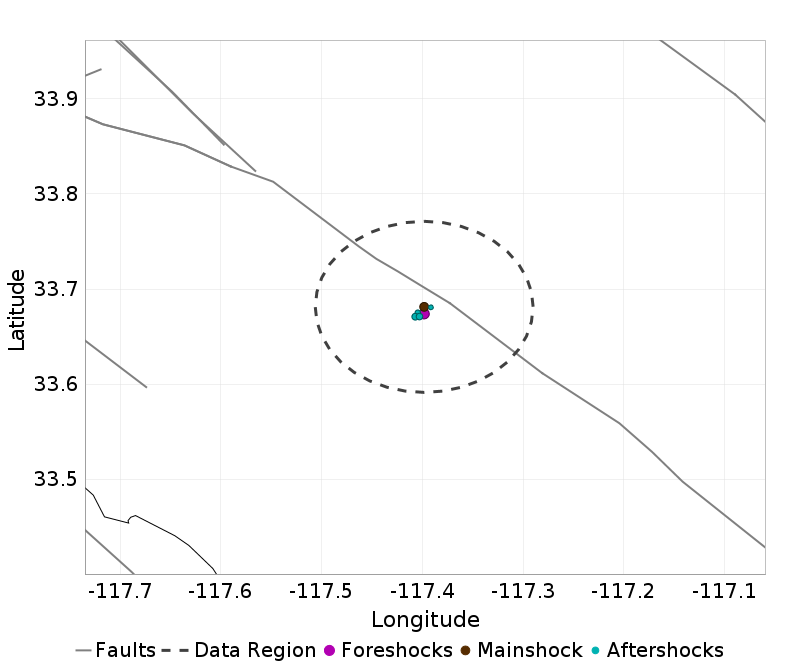

Aftershock Locations

(top)

Map view of the aftershock sequence, plotted as cyan circles. The mainshock and foreshocks are plotted below in brown and magenta circles respectively, but may be obscured by aftershocks. Nearby UCERF3 fault traces are plotted in gray lines, and the region used to fetch aftershock data in a dashed dark gray line.

First DayTo Date
First DayFirst Day

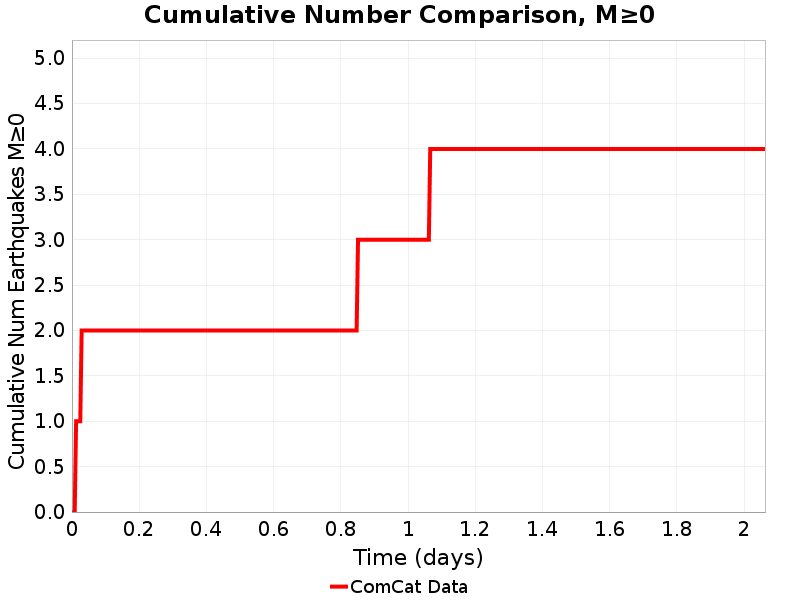

Cumulative Number Plot

(top)

This plot shows the cumulative number of M≥0 aftershocks as a function of time since the mainshock.

Time Func

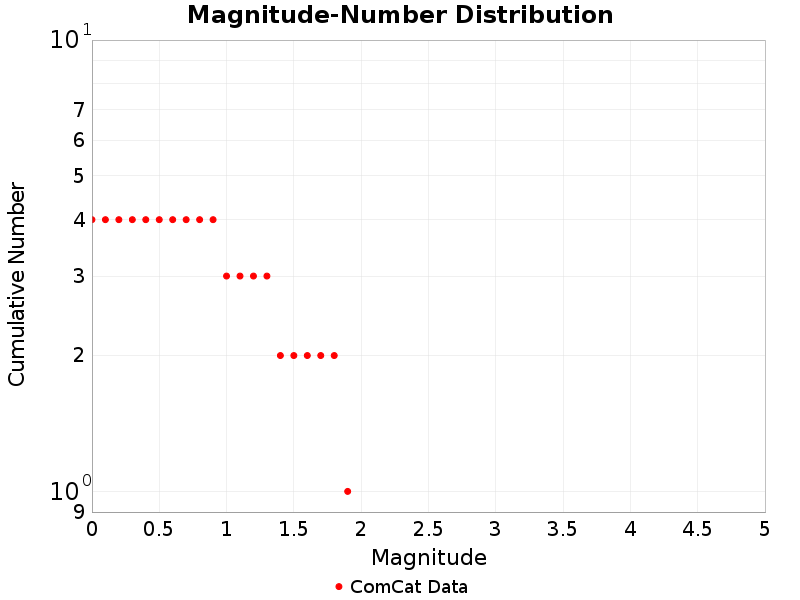

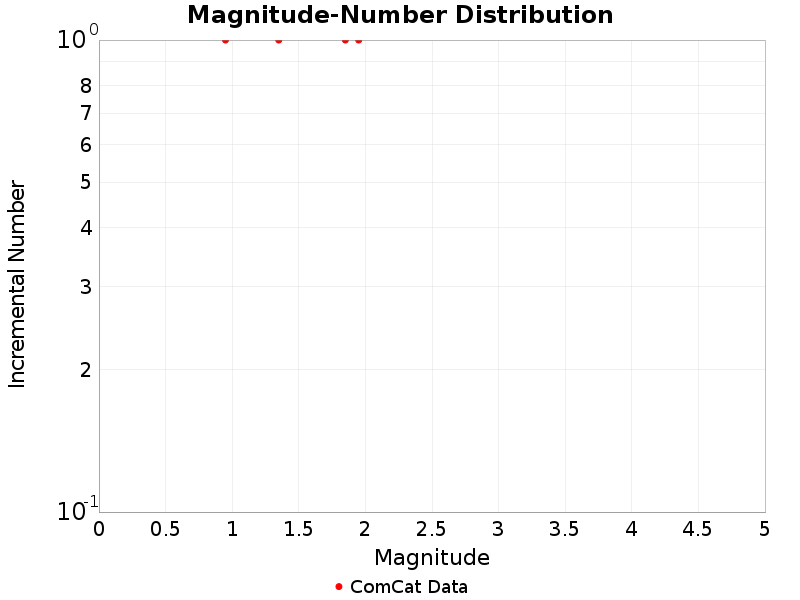

Magnitude-Number Distributions (MNDs)

(top)

These plot shows the magnitude-number distribution of the aftershock sequence thus far. The left plot gives an incremental distribution (the count in each magnitude bin), and the right plot a cumulative distribution (the count in or above each magnitude bin).

Incremental MNDCumulative MND
IncrementalCumulative

Pre Event Seismicity Results

(top)

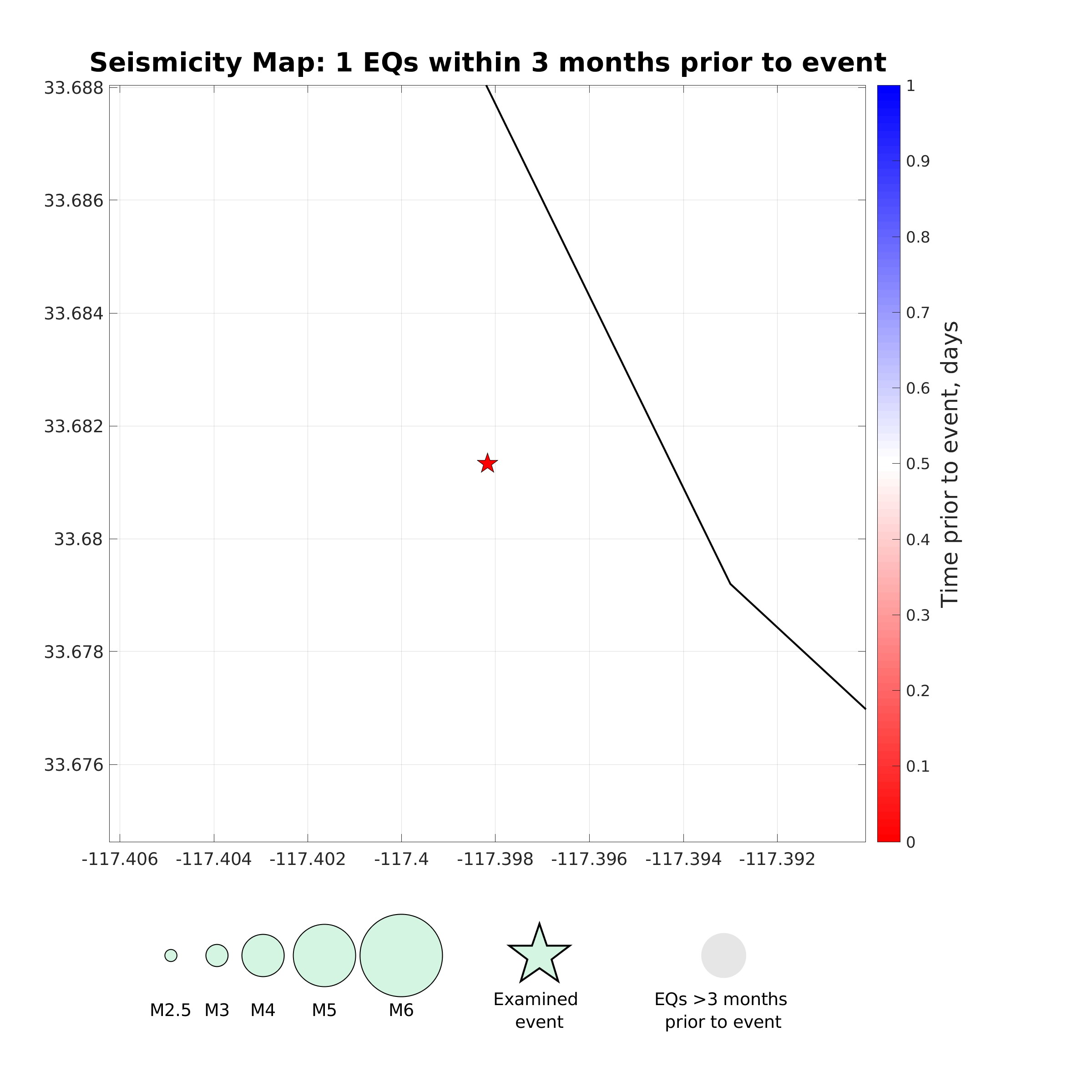

Figure 1. Seismicity Map
Map view of earthquakes (circles) with magnitude M2.0+ that occurred within 3 months and within 5 rupture lengths from the event considered (star). Circle size is proportional to magnitude (see legend) and color represents the time prior to the event considered (see colorbar).

Figure 2. Magnitude (with b-value estimation) vs. Time
Magnitude (left axis) and b-value (right axis) vs. time of earthquakes in the seismicity map prior to the event considered (star). Color represents distance to the event (see colorbar). The b-value (gray line) is estimated within a sliding window of 20 days; results are only reported for windows with >5 events. The gray dashed lines correspond to a 95% CI for the b-value. The b-value estimation and confidence intervals are according to Tinti and Mulargia (1987).

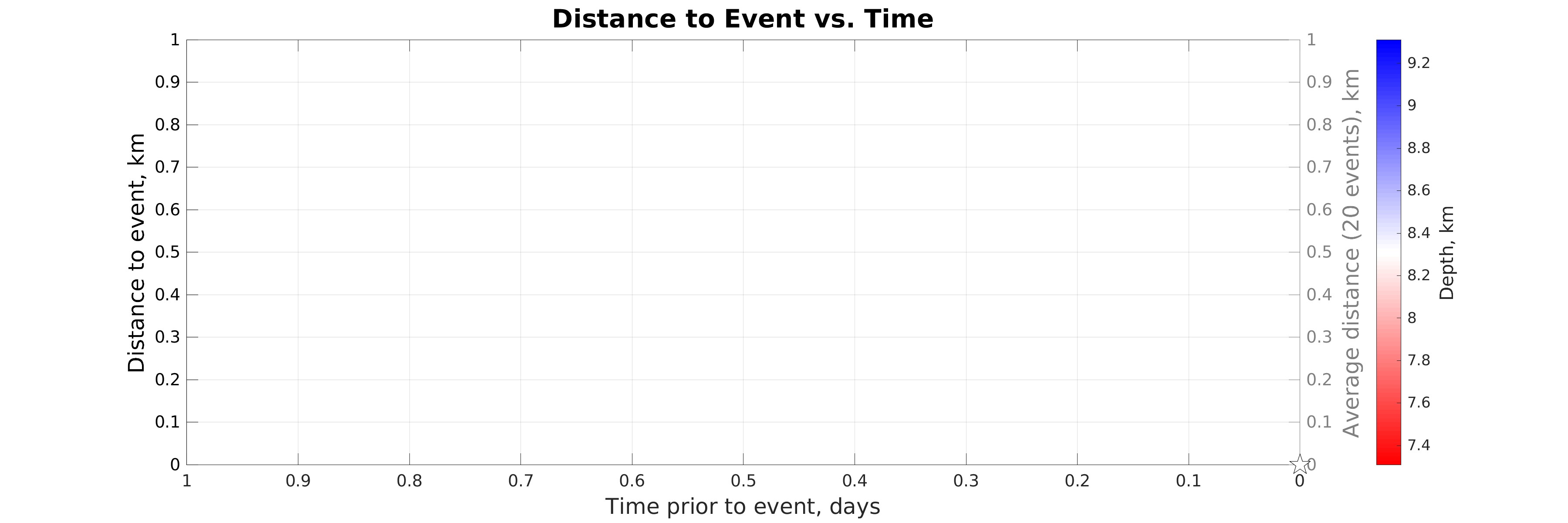

Figure 3. Distance vs. Time
Distance (left axis) vs. time of earthquakes in the seismicity map prior to the event considered (star). Color represents hypocentral depth (see colorbar). The gray line shows distance to event considered averaged within sliding time window of 20 events.

Figure 4. (Depth vs. Time)
Hypocentral depth (left axis) vs. time of earthquakes in the seismicity map prior to the event considered (star). Color represents distance to the event considered (see colorbar). The gray line shows the depth averaged within sliding time window of 20 events.
